NPGS System Description

NPGS : System Description

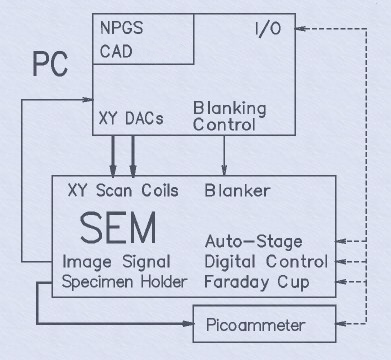

Required Connections (bold arrows):

Analog XY Inputs; +/-3v to +/-10v range typical, other ranges can be supported; >5k ohms impedance typical, >2k ohm is supported.
Picoammeter; A picoammeter that can read the beam current hitting the sample is required for lithography. Typically, an external picoammeter is connected to the specimen current output from the microscope stage, or less often, a picoammeter will be built into the microscope. In either case, the picoammeter is usually not directly connect to NPGS, although it can be through a optional interface.

Typical Connections (thin arrows):

Image Signal; within +/-10v; used for NPGS Alignment feature.
Blanker; within +/-5v, <200 mA; fast blankers, slow shutters, and systems with no blankers are all supported.

Optional Connections (dashed arrows):

Automated Stage; interface programs for several common automated stages are available at no charge. Any automated stage can be supported, if the serial interface protocol is available.
Digital Microscope Control; interface programs for several common digital microscopes are available at no charge. Any digital microscope can be supported, if the serial interface protocol is available.
Faraday Cup & Picoammeter; NPGS can optionally be connected to control a Faraday cup and/or read from a picoammeter, but most systems will have a manually controlled Faraday cup and picoammeter.

System Description:

Software:

NPGS - Version 9.0 (See "Upgrade History" for a listing of the most advanced features.)
DesignCAD Express v16.2 (five copies included).
Windows 2000 Pro or XP Pro (when PC is included).

Hardware:

High speed (5 MHz, optional to 6 MHz), 16 Bit, high resolution (0.25%) PCI516 lithography board.
Cables to connect NPGS to microscope.
Optional relay or switch to share microscope input with another accessory, typically an EDX system.
Pentium IV 3.0 GHz computer (or better) with:
512 Mb RAM, 80 Gb Hard Disk, CDRW Drive.
17" LCD Monitor.
Wheel Mouse, LAN, USB, Serial, Parallel.

NPGS Universal Installation Guide:

Detailed installation instructions for nearly every common microscope.
How to calibrate absolute pattern size and aspect ratio.
Checklist for testing and characterizing the microscope.
Interface instructions for serial or Ethernet microscope interface, as appropriate.

NPGS User's Manual including:

Detailed instructions for NPGS software.
Detailed tutorial on how to set up and run a Scanning Electron Microscope for writing nanometer patterns.
Sample patterns and run parameters.
Solutions to Problems section covering nearly all common microscope and/or lithography problems.

NPGS Training:

Optional on-site user training (see "Questions & Answers" page for required and recommended equipment for on-site training)

The user must supply:

SEM, STEM, FIB, or dual* SEM/FIB with:
XY External Scan Control Input (within +/- 3 to +/- 10 volts, >2k ohms).
Image Signal Output (within +/- 10 volts).
Picoammeter for Measuring Beam Current (0.1 pA resolution or better; typically Keithley 6485).
*A dual SEM/FIB can have both beams controlled by NPGS, but only one at a time where either a software or hardware switch (depending on microscope model) will select the writing mode.

Recommended:

Beam Blanker with rise/fall times <1 usec (digital input within +/- 5 v and <200 mA).
(Slow Beam Shutter or no blanker will also work).
Fine Z stage control to ~1um.
Faraday Cup (apertures to make cup are included with NPGS).
Scan Rotation Option.
Gold on Carbon SEM standard mounted on sample holder.
Stray AC less than 3x10^-7 Tesla(p-p); Magnetic shielding for chamber or active field cancelling system can reduce interference.
Vibration less than 2x10^-6 meters(p-p) over 5 Hz.

Other Configurations: (NPGS Software is Identical to Full System)

The user may supply any of the following:

PC with Windows 2000 or XP Professional.
Installation.

Minimum computer requirements for NPGS v9.0 and higher:

Pentium III CPU or better (> 3 GHz recommended).
Windows 2000 Professional.
128Mb RAM (256 Mb or more recommended).
CD ROM.
Parallel Port.
1available PCI Slot (for full length board, 12.3" = 31.2 cm).
1024x768 Graphics.
Serial Ports and/or Ethernet interface may be required for optional control of a stage and/or SEM.

NPGS Updates:

NPGS software updates are available at no charge to current* NPGS users. See "Upgrade History" for a listing of the most advanced features. (*This includes all original owners of NPGS who have purchased a full version of the NPGS software.)
